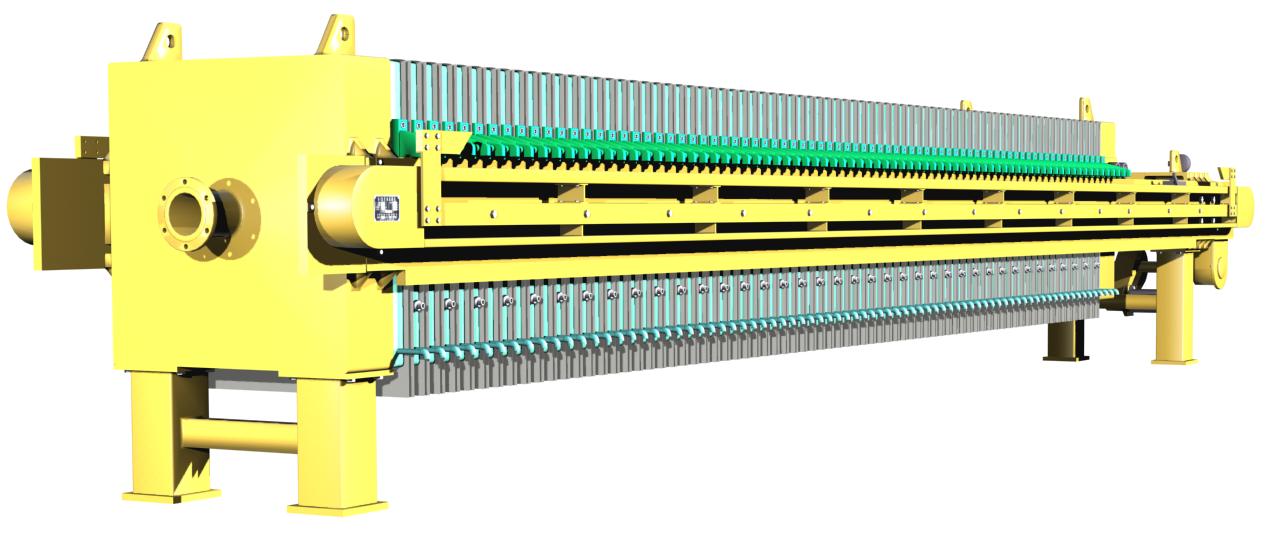

Hydraulic chamber membrane filter press

1, Control system adopt PLC fuzzy control.
2, It features simple operation and low failure rate.
3, Auto plate shifting system adopts frequent conversion plate shifting, it increased running times per hour.
4, It realized non-polluting, zero emissions and cyclic utilization.
5, Its maximum treating capacity is up to 20C.M., cycle times is up to 2 times per hour, cake moisture is 30%.

On the basis of hydraulic filter press, automatic membrane filter press is equipped with PLC control to realize auto plate shifting, it can save labor resource in largest degree. Auto membrane filter press is used in printing dyeing industry and papermaking industry, the cake moisture is below 35%. Compared with traditional belt filter press, automatic membrane filter press can keep cake moisture lower than 35%, dryness of cake is improved by 2-3 times, running costs is lower. It completely replaced belt filter press, and brought huge profits to the users. Automatic membrane filter press operates fully automatically, it is equipped with auto cloth cleaning system and electrically controlled valve instrument, and they can work with no human intervention.

Chemical, petroleum, pharmaceutical, light industry, food, mineral processing, water treatment, electroplating, metallurgy, dyes, textile,etc.
