CJF pinch valve

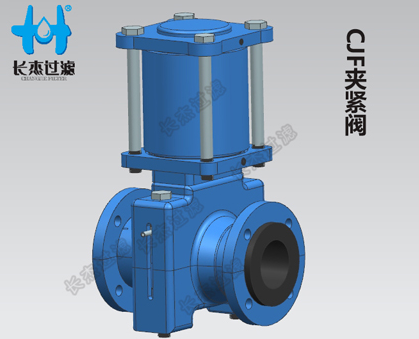

CJF clamping valve is a pneumatic valve which was originally developed by Changjie Filter Equipment Co., Ltd. for its filter press based on the operation needs of Changjie filter press .It is applicable for pipeline flow closure of all kinds of pulp with simple technical principle .The valve has many advantages ,such as high wear resistance and corrosion resistance, low flow resistance , endurable actuator , reliable closure and low use-cost.
Product introduction:

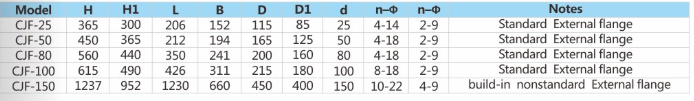

There are 5 standard diameter specifications for the CJF clamping valve as follows: Dg25, Dg50, Dg80, Dg100 and Dg150, with applicable temperature range of -40℃~+110℃, with applicable pressure range of 0~0.8Mpa, with standard pressure supply for the cylinder ranges of 0.4Mpa ~ 0.6Mpa.
  • Equip introduction
  • Tec performance
  • Equip parameters
  • Tec principle
  • Applicable material
  • CJF clamping valve is a pneumatic valve which was originally developed by Changjie Filter Equipment Co., Ltd. for its filter press based on the operation needs of Changjie filter press.It is applicable for pipeline flow closure of all kinds of pulp with simple technical principle.The valve has many advantages ,such as high wear resistance and corrosion resistance, low flow resistance, endurable actuator, reliable closure and low use-cost.

Classic case
